Skid Mounted Cryogenic Air Separation Unit

Skid Mounted Cryogenic Air Separation Unit

Skid Mounted Cryogenic Air Separation Unit
Skid Mounted Cryogenic Air Separation Unit Skid Mounted Cryogenic Air Separation Unit

صورة كبيرة :  Skid Mounted Cryogenic Air Separation Unit افضل سعر

تفاصيل المنتج:
Place of Origin: Zhejiang ,China ( mainland)
اسم العلامة التجارية: UIG
إصدار الشهادات: ISO 9001:2000
Model Number: KZO, KZON
شروط الدفع والشحن:
Minimum Order Quantity: 1 SET
الأسعار: Negotiation
Packaging Details: Sea Worthy Packing
Delivery Time: 120 Days
Payment Terms: T/T ,L/C
Supply Ability: 2-3 Sets Per Month
مفصلة وصف المنتج
product name: Air Separation Unit Power: 76-138 KW
Production Capacity: 50/60/80/100 m3/hour Voltage: 380v,400V,440V
feature: high purity Gox Purity: ≥99.7
تسليط الضوء:

oxygen gas generator, oxygen nitrogen plants

,

oxygen nitrogen plants

Skid Mounted Cryogenic Air Separation Unit



Quick Details:



Condition: new

Place of origin: China(mainland)

Brand name: UIG

Model number: KZO, KZON TYPE

Production capacity:50/60/80/100 m3/hour

Power :76-138 KW(Shaft power)

Voltage:380v,400V,440V

Certification: ISO 9001:2000

Warranty:1 year

Life:20 years with proper maintenance

After-sales service provided: Engineers available to service plants overseas

Usage: Industrial and medical (oxygen, nitrogen) .

UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 % AND NITROGEN 99.999%



Specifications:



Product with oxygen

O2   flow

50  m³/h

60  m³/h

80  m³/h

100  m³/h

O2   purity

≥99.7%

≥99.7%

≥99.7%

≥99.7%

O2   pressure

15 -25MPA

15 -25MPA

15 -25MPA

15 -25MPA

Start-up  time

8-12 Hours

8-12 Hours

8-12 Hours

8-12 Hours

Operating  period

≥1  Years

≥1  Years

≥1  Years

≥1  Years



Product with oxygen or nitrogen

O2   flow

50  m³/h

60  m³/h

80  m³/h

100  m³/h

O2   purity

≥99.7%

≥99.7%

≥99.7%

≥99.7%

O2   pressure

15 -25MPA

15 -25MPA

15 -25MPA

15 -25MPA

N2   flow

Or (50m³/h )

Or (60m³/h )

Or (80m³/h )

Or (100m³/h )

N2   purity

99.999%

99.999%

99.999%

99.999%

N2   pressure

15 -25MPA

15 -25MPA

15 -25MPA

15 -25MPA

Start-up  time

8-12 Hours

8-12 Hours

8-12 Hours

8-12 Hours

Operating  period

≥1  Years

≥1  Years

≥1  Years

≥1  Years



Description:

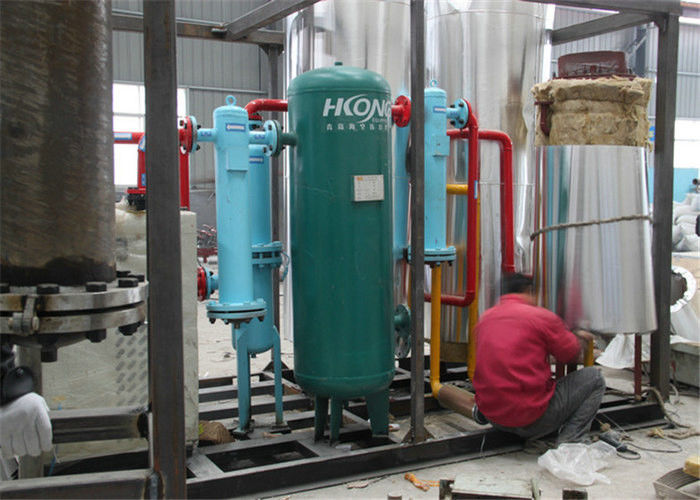

Skid mounted type air separation plant, connected by high pressure flexible pipe between individual machines/equipments ,



Plant features



1) This air separation plant adopts cryogenic separation process. Oxygen is obtained by inner compression, so it can be both for medical & industrial usage and to be filled into cylinder.

2) Whole set of plant adopts skid mount type and connected with high-pressure hose between individual machines/equipments. So, it no need any foundation required to save investment cost for civil construction and shorten installation period accordingly.

3) Cooling mode of plant adopts air cooling for whole set of plant, no cooling water system required so it also save investment cost for the owner.

4) This plant can be shifted to any second plant to operate because of its no fixed foundation feature. So it is a mobile type plant.



Applications:



we supplied to Many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania) .

Skid Mounted Cryogenic Air Separation Unit 0

Skid Mounted Cryogenic Air Separation Unit 1

Competitive Advantage:



Higher economic efficiency, good quality, lower transportation cost, better performance price, safety and convenience.
